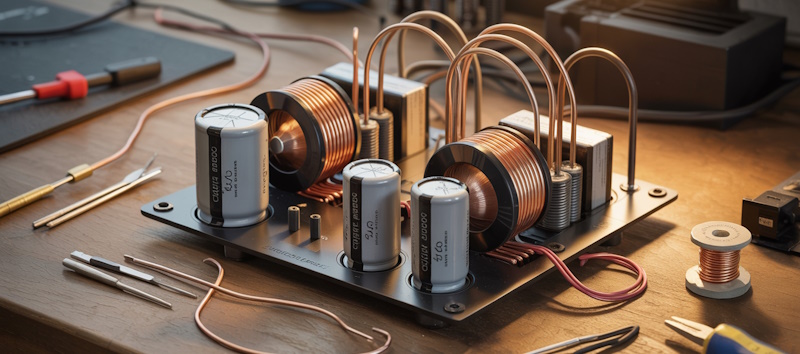

Crossover Capacitors
 |
|
When replacing a capacitor in an existing printed circuit crossover board, order the same capacitance value (in uF - microfarads) as the original. Our Audiophiler capacitors are rated at a maximum of 400 volts, which offers significant margin over typical voltages found in audio speaker circuits. |
|
|
If you wish to create a basic first order crossover for a horn or tweeter using a single capacitor, use the following table to determine your crossover frequency, based on the impedance of the horn/tweeter, and the capacitance of the crossover capacitor. (Crossover frequencies have been rounded off). |
|
Capacitor Value |
2 ohms |
4 ohms |
8 ohms |
16 ohms |
|
1.0uF |
80,000Hz* |
40,000Hz* |
20,000Hz* |
10,000Hz |
|
2.2uF |
36,000Hz* |
18,000Hz* |
9,000Hz |
4,500Hz |
|
3.3uF |
24,000Hz* |
12,000Hz |
6,000Hz |
3,000Hz |
|
4.7uF |
16,800Hz* |
8,400Hz |
4,200Hz |
2,100Hz |
|
6.8uF |
11,600Hz |
5,800Hz |
2,900Hz |
1,450Hz |
|
Frequencies marked with a (*) are effectively beyond the range of normal human hearing |
|
|
Crossover Capacitors |
|
|
|
MKP Audiophiler axial audio grade non-polarized
crossover capacitors made in Germany. These are the highest
quality crossover capacitors available today. Rated at 400V, for plenty
of headroom in high-wattage applications. Values include 1uF, 2.2uF, 3.3uF,
4.7uF, 6.8uF, and 10uF. All MKP Audiophiler capacitors are 31mm long (1.22
inches), in an axial lead format. Diameters are as follows: 1uF: 12.6mm, 2.2uF:
16.6mm, 3.3uF: 20.3mm, 4.7uF: 22mm, 6.8uF: 26mm, 10uF: 26mm.
Select capacitor value in Options.
Part #MKP-XX |
Starting at
$1.79 |
|
