Upgrade your PA
Cabinets to Neutrik™ speakON™! |
|
|
|
Click on photo for
larger view |

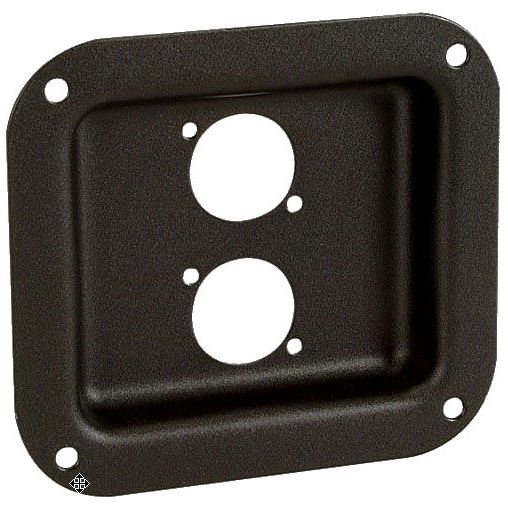

JACK PLATE, BLACK METAL
For two Neutrik™
NL4MP speakON™
connectors
Steel dish pre-punched. Constructed of heavy-duty 1.2
mm/.047" steel. Black oxide finish. Jacks not included - order
separately. Dimensions: 4" x 4 3/8".

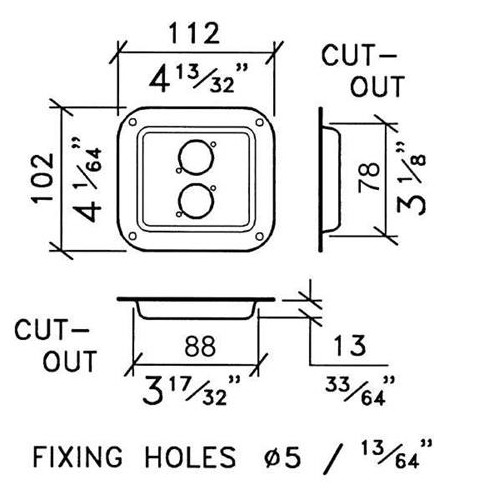

See full dimensions here
Part #JP-028 |
$5.95 |
|
|
Click on photo for
larger view |

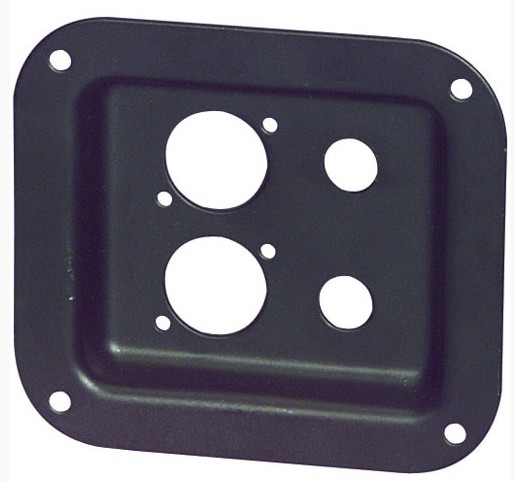

JACK PLATE, BLACK METAL
For two Switchcraft #11 jacks and two Neutrik™ NL4MP speakON™ connectors.
This allows you to connect to the cabinet via speakON™ connectors or 1/4" plugs.
Constructed of heavy-duty 1.2 mm/.047" steel. Black oxide finish. Jack not
included - order separately. Dimensions: 4" x 4 3/8".

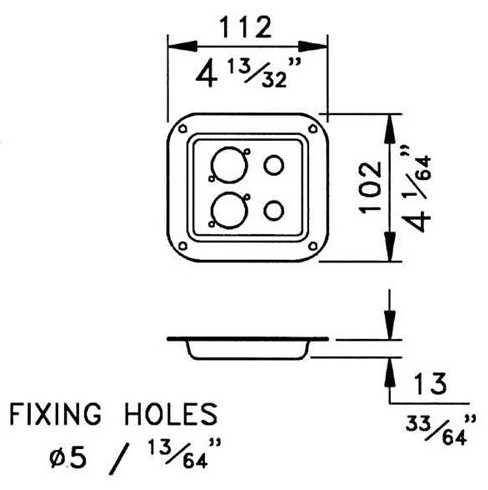

See full dimensions here
Part #JP-322 |
$5.95
Only 1 left in stock. This item is being
discontinued. |
|
Click on photo for
larger view |

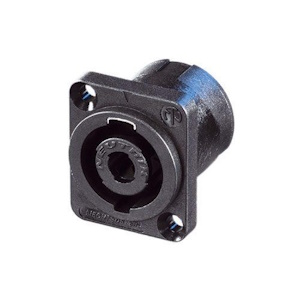

 JACK, SPEAKON, CHASSIS-MOUNT - MADE FOR
WIRE ATTACHMENT (3/16" PUSH ON CONNECTORS OR SOLDER TABS).
Made by Neutrik. 4 pins (1+, 1-, 2+, 2-) Used in a variety of brands, including
Peavey™.
Part #J-NL4MP |
$5.95 |
 |
|
|
Guitar Cabinet
Plates |
|
|
Click on photos for
larger views
 |
JACK PLATE, MONO/STEREO, PLUG AND PLAY
This unit eliminates the confusing switch found on most stereo cabinets. Just pick your impedance and plug in.
Labels shows the common 4 or 16 Ohm Mono and 8 Ohm Stereo option. Ready to install with a steel dish, wires, and speaker connectors already assembled - as shown in the photo.
Requires a 3 inch x 3-7/16 inch rectangular hole cut in the cabinet. Direct easy replacement for many existing small jack dishes. No soldering required. Complete wiring directions included - click here for more details.
Designed to be used with 2x12 cabinets containing two 8-ohm speakers, 4x12
cabinets with four 16-ohm speakers, or 4x12 cabinets with four 4-ohm speakers.
Can be used for the following configurations:
- 4 ohm mono
- 8 ohm left + 8 ohm right stereo
- 8 ohm left only mono
- 8 ohm right only mono
- 16 ohm mono
Part #CJP-1 |
$45.95
|
|
|
Click on photo for
larger view |

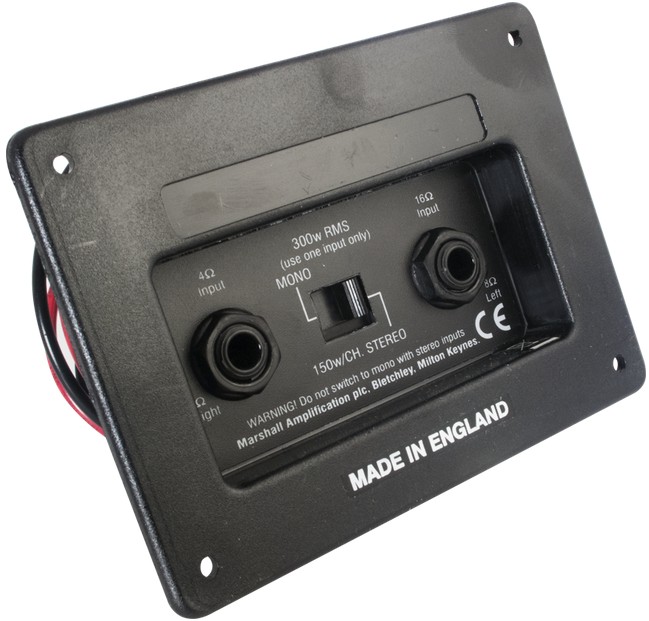

 Complete
Genuine Marshall
JACK PLATE, STEREO / MONO
Marshall™ jack plate as found on the
Marshall™ 1960A, 1960B, Vintage Modern 425A or 425B Marshall™ 4x12 cabinets.
Marshall part number M-196X-50-01.
Part #JP-800 |
$59.95 |
|
|
Click on photo for
larger view |

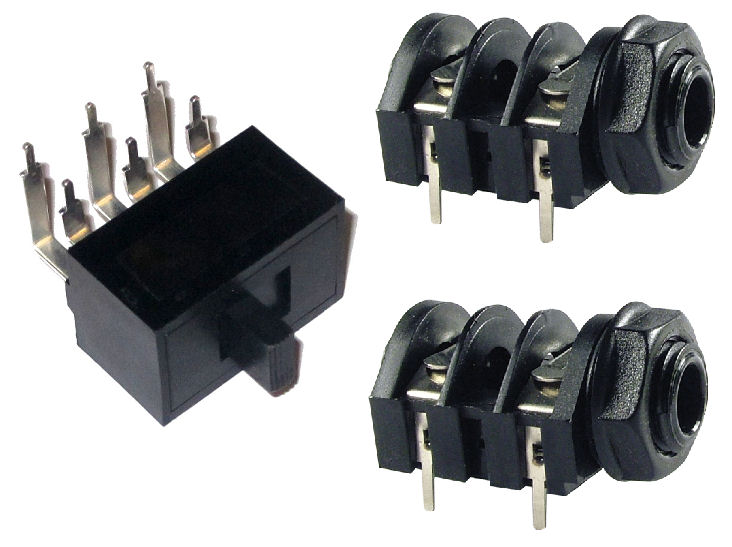

 Marshall™
JACK PLATE REPAIR KIT
Replaces the common failure parts on
the JP-800 mono/stereo jack plate (shown above) as found on the 1960A, 1960B,
Vintage Modern 425A or 425B Marshall™ 4x12 cabinets. Kit contains
both jacks and a new mono/stereo select switch. If the plastic
housing and the PC board are intact, this kit replaces all of the functional
components on the jack plate.
Part #RK-800 |
$23.95 |
|
|
Click on photo for
larger view |

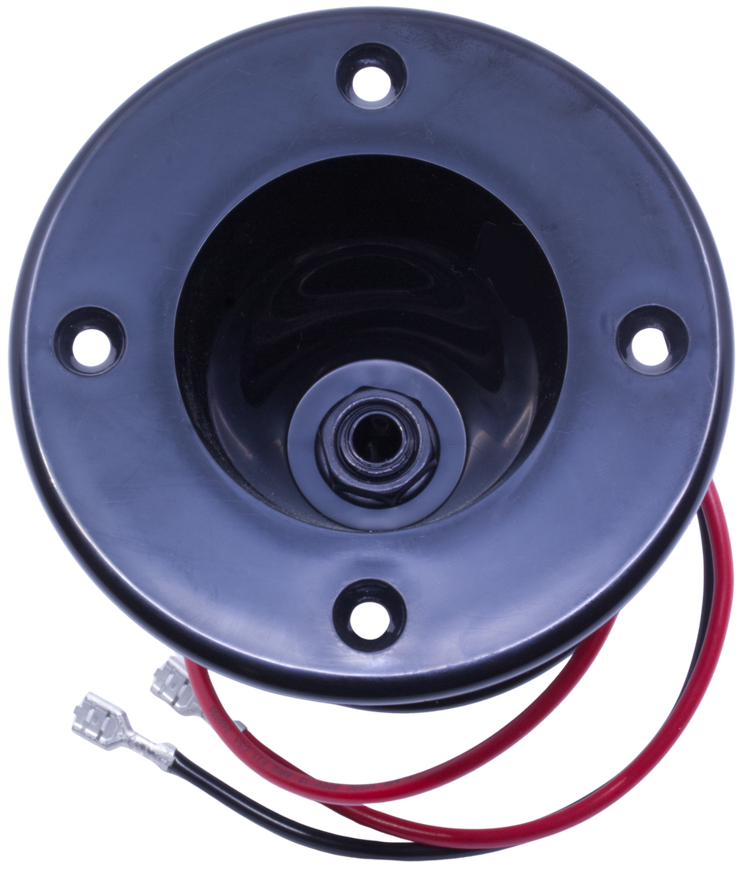

MARSHALL™
JACK PLATE
Genuine Marshall™
prewired plastic jack cup for input jack on speaker cabinets.
This cup includes a Cliff jack with prewired quick disconnect
cables to connect to a speaker. Mounting hardware not included.
Found often on vintage Marshall cabinets.
- Diameter = 3 3/4''
- Center to Center Screw
Hole Spacing Distance = 2 1/8''
- Depth 2.0 in"
- Inner Diameter 2.19"
- Mounting Hole Center to
Center A 2.1"
- Mounting Hole Center to
Center B 2.1"
- Mounting Hole Diameter
0.18"
Part #JP-104 |
$12.95 |
|
Click on photo for
larger view |
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender™ jack plates. Works well with the Switchcraft J-11 1/4" jacks
that we carry. Hole is 3/8", for most Switchcraft type jacks. Easy to install, economical.
Includes 3 black oxide coarse-thread mounting screws, #6x3/4".
Jack not included - order separately. For size specifications, click here.
Part #JP-180 |
$1.89
|
|
|
Click on photo for
larger view |

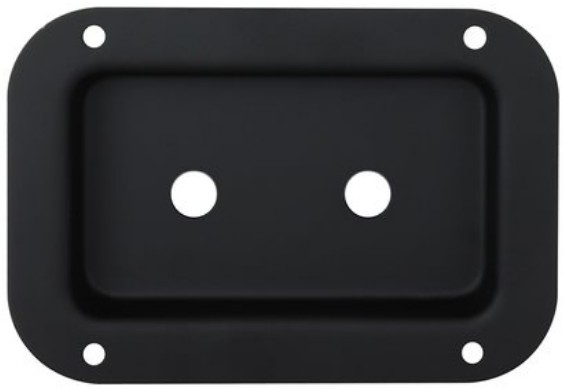

JACK PLATE, BLACK METAL
For two Switchcraft™ #11 or two British™
J-502 jacks.
Constructed of heavy-duty 1.2 mm/.047" steel. Black oxide finish.
Four #8 x 3/4" black mounting screws are included. Jacks not
included - order separately. Dimensions: 3-1/2" x 5-1/8".

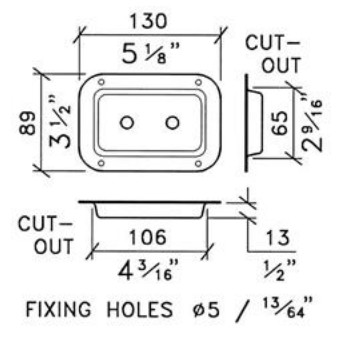

See full dimensions here
Part #JP-344 |
$6.95 |
|
Click on photo for
larger view |
Revisit™
JACK PLATE COMPLETE WITH
SWITCHCRAFT #11 JACK.
Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180 |
$5.95
|
|
Click on photo for
larger view |
 Fender™
STYLE SPEAKER CABINET JACK PLATE ASSEMBLY WITH JACK
As used on blackface and silverface speaker cabinet (Bassman, Bandmaster,
Showman, etc). Complete with long-bushing Switchcraft jack
with nut and trim washer, and two
nickel jack ferrules for the inside and outside of
the cabinet back. For wood panels between 3/8 inch and 1/2 inch thick.
Keep your vintage Fender™ cabinet looking original!
Part #JPC-577 |
$16.95 |
|
Click on photo for
larger view |
CRATE™ JACK PLATE, BLACK PLASTIC, DUAL 1/4" JACK, SIZE 3 3/8" x 3 3/8".
Designed to fit in a 3" round hole, easily cut in a cabinet with a 3" hole saw. Jack mounting hole is 3/8", for most Switchcraft
and British type jacks. Easy to install, economical.
Found in many Crate™ speaker cabinets,
including the Crate™
G412SL, GX412XSA, GX412XR, GT112SL, BX-115E and other cabinets.
Priced per jack plate. Jacks and mounting screws not included.
Part #JP-225 |
$2.79
|
|
Click on photo for
larger view |

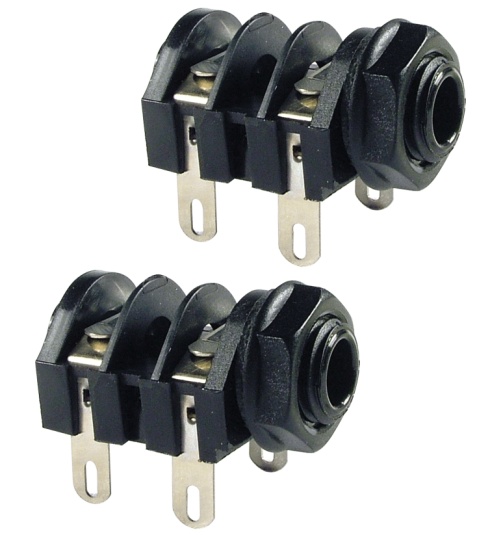

JACK SET OF 2, FOR ABOVE JP-225 JACK PLATE, 1/4", MONO PLASTIC, BRITISH STYLE, SOLDER TERMINALS, REPLACEMENT FOR
Crate™
4 solder terminals, switched. Used in the above JP-225, as found in some Crate™
speaker cabinets. With nut and washer.
Original Cliff UK part number 1160A. Set of 2 Jacks.
Part #J-502-2 |
$6.55
(for a set of 2 jacks) |
|
