TACT SWITCH, PC MOUNT
Fits the following: Boss™ ME-5.
Casio CZ-1000, CZ-3000, CZ-5000. Ibanez TS9 Tube Screamer. Kawai K3, Korg DW Series, EX-8000, KPR-77, Poly-61. Kurzweil K1000, K1200, K2000.
Roland Axis-1, FC-100, GR-700, JX-8P, PG-800, TB-303, TR-606. Yamaha DX7,
DX9, KX88. Oberheim Matrix 6/6R/1000. Sequential Circuits Multi-Trak.
Boss™ part # 13129715. Korg # 37505000. Roland # 13129715.
Yamaha # KA905510. 12mm x 12mm (about 1/2" x 1/2").
Height of switch from under the base to the top of the plunger is about 7mm.
Data Sheet here.
Part #FS-621 |
$0.99 |
|
 |
FOOT SWITCH, REPLACEMENT FOR BOSS™ EFFECT PEDALS
Replacement for Boss™ effects pedals, SPST momentary, push switch. Mounts in square hole approximately .55" x .55" x 1.08" overall length including terminals.
Part #FS-511 |
$4.50 |
|
Click on photo for
larger view |
SCREWS FOR BOTTOM PLATE - BOSS™
PEDALS (ALSO SOME ELECTRO-HARMONIX PEDALS)
Replacement bottom plate screws for some Boss™ pedals. #4 X 1/4",
set of 4, stainless steel.
Part #SC-971 |
$0.79
(for a set of 4 screws) |
|
Click on photo for
larger view |
BOSS™ POWER JACK FOR MANY DIFFERENT BOSS™ MODELS.
This DC power jack is found on vintage MIJ Boss™ pedals and others. This jack has
a 2.1mm pin for use with 5.5mm barrel plugs. Three solder lugs are available for
tip, ring, and switch. Outside dimensions of jack face are 13.0 mm W
x 15.5 mm H. Total depth of jack assembly (including solder lugs) is
18.5 mm.
Part #BJK-407 |
$1.49 |
|
Click on photo for
larger view |
 UPGRADE!
HEAVY-DUTY RUBBER GROMMET FOR THE FRONT OF SOME BOSS™
PEDALS, BY REVISIT™
These upgraded neoprene rubber grommets from Revisit™
 fit
into the oval-shaped hole where the thumbscrew is inserted in Boss™
Pedals. The original grommet is frequently misplaced, wears out
due to
friction from the threads on the thumbscrew, or
sometimes turns to goo
after several years. These upgraded grommets are superior to the
original Boss™ grommets, and will give you many years of service at a lower
price!
Part #RGB-039 |
$0.89
each |
|
Click on photo for
larger view |
 OEM
BOSS™ RUBBER GROMMET FOR THE FRONT OF SOME BOSS™
PEDALS
 These OEM grommets from
Boss™ fit into the oval-shaped hole where the
thumbscrew is inserted in
Boss™ Pedals. Frequently misplaced, wears out due to friction from
the
threads on the thumbscrew, or sometimes turns to goo after several years.
Part #RGB-043 |
$1.25
each |
|
Click on photo for
larger view |
BOSS™ STYLE GUITAR AMP HANDLE
Black handle strap, "dogbone" style. Nickel end hooks - replacement for
Boss™ Katana (some verions), Dual Cube, and AC22LX amps. Does
not contain Boss™ logo, so it may be used on other brands of amps. Color of handle strap is
black. Screws not included.
Part #BAH-329 |
$7.99 |
|
Click on photo for
larger view |
AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, BLACK WITH
BLACK STITCHING
Replacement for Boss Nextone series of amps. Handle
length is 8-9/16 inches (8.57"), center-to-center mounting distance is 7-3/8
inches (7.38") Black with black stitching, nickel mounts.
More details Mounting
screws not included.Part #AH-281 |
$16.95 |
|
SET-SCREW
Click on photo for
larger view |
"MIDDLE" KNOB FOR BOSS™ STYLE PEDALS WITH 3 KNOBS,
KNURLED
This knob is a push-on for knurled shaft pots, used as the center knob on Boss™
pedals which have 3 knobs. The other two knobs are typically like
the K-828 knob, below. 14 mm diameter.
Part #K-353K |
$1.79 |
|
KNURLED
Click on photo for
larger view |
"MIDDLE" KNOB FOR BOSS™ STYLE PEDALS WITH 3 KNOBS,
KNURLED
This knob is a set-screw knob for smooth shaft or D-shaft pots, used as the center knob on
Boss™
pedals which have 3 knobs. The other two knobs are typically like
the K-828 knob, below. 14 mm diameter.
Part #K-353S |
$1.79 |
|
KNURLED
Click on photo for
larger view |

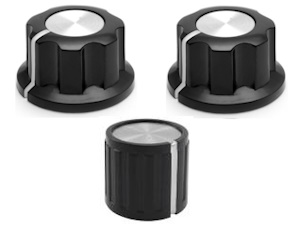

BOSS™ KNOB KIT FOR 3-KNOB BOSS™ STYLE PEDALS,
PUSH-ON KNURLED TYPE
This contains all three knobs used on many models of Boss™ pedals. All
three knobs are push-on, for knurled pots. The two larger knobs are
20mm in diameter, the smaller knob for the middle position is 14 mm in diameter.
Part #K-727K |
$5.69 |
|
SET-SCREW
Click on photo for
larger view |
BOSS™ KNOB KIT FOR 3-KNOB BOSS™ PEDALS,
SET SCREW TYPE
This contains all three knobs used on many models of Boss™ pedals. All
three knobs are set-screw type. The two larger knobs are 20mm in diameter, the
smaller knob for the middle position is 14 mm in diameter.
Part #K-727S |
$5.69 |
|
SET-SCREW
Click on photo for
larger view |
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.
CLASSIC LOOK FOUND ON BOSS™ EFFECTS PEDALS
Small size 0.78"
(20mm) diameter, 0.43" (11mm) tall, fits
smooth 1/4" shaft. Classic look found on Boss™ pedals.
With set screw.
Part #K-828 |
$1.95 |
|
SET-SCREW
Click on photo for
larger view |
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.
CLASSIC LOOK FOUND ON BOSS™ EFFECTS PEDALS
Medium size 0.91"
(23mm) diameter, 0.5" (12mm) tall, fits
smooth 1/4" shaft. Smooth silver top. Classic look found on
Boss™ FX units.
With set screw.
Part #K-348 |
$1.95 |
|
SET-SCREW
Click on photo for
larger view |
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.
CLASSIC LOOK FOUND ON BOSS™ EFFECTS PEDALS
Large size 1.06" (27mm) diameter, 0.6"
(15mm) tall, fits
smooth 1/4" shaft. Smooth silver top. Classic look found on
Boss™ FX units. With set
screw.
Part #K-372 |
$1.95 |
|
KNURLED
Click on photo for
larger view |
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP,
FOR KNURLED SHAFT POTS.
CLASSIC LOOK FOUND ON BOSS™ EFFECTS PEDALS
Small size 0.78"
(20mm) diameter, 0.43" (11mm) tall, fits
1/4" knurled shaft. Classic look found on Boss™ FX units.
Part #K-842 |
$1.95 |
|
Click on photo for
larger view |
ROLAND
JACK NUT, FOR ROLAND AND ZOOM. FITS MOST ROLAND KEYBOARD AND AMPLIFIER
JACKS, AND SOME ZOOM PROCESSORS
Replacement jack nut for Roland products. Fits Roland models AT-90S, JC120,
KC60, CUBE-15XL, MICRO CUBE, JP-8080, HP-335, KR117M-PE, CUBE Street, BC30,
BC60, BC210, BC310, JUNO-2, JX-10, KC100, KC350, KC550, KCW-1, FP8, MKS-20,
MKS-50, MKS-70, U-20, U-220, D-50, D-550, RD-250, RD-300, CUBE-15, CUBE-30,
CUBE-60, GP-16, TU-12, TU-12P and others. Also fits Zoom Models 9030
and 9050 Processors from the 1990s.
Part #JN-756 |
$3.15 |
|
Click on photo for
larger view |
JACK,
1/4", CHROME NUT, CLOSED CIRCUIT, PC MOUNT Stereo T/R/S jack, no
switching. This jack can be
found in many modern versions of the classic Boss™ pedals such as the DS-1 and
SD-1. Nut and washer included.
Part #J-739 |
$3.95 |
|
Click on photo for
larger view |
JACK, 1/4", BOSS™
PEDALS, OPEN CIRCUIT MONO, STEREO LUGS,
METAL BUSHING
 High
quality Japanese made ¼” mono jack found in many Boss™ pedals. This jack has two
solder lugs - one for the tip and one for the sleeve. This style of jack
has been widely used across the industry and can also be found in many Roland
items. Includes nut and washer.
Part #J-537 |
$4.95 |
|
Click on photo for
larger view |
JACK, 1/4", BOSS™
PEDALS, OPEN CIRCUIT STEREO, SOLDER LUGS,
METAL BUSHING
High
quality Japanese made ¼” stereo jack found in many Boss™ pedals. This jack has
three
solder lugs - one for the tip, one for the ring, and one for the sleeve. This style of jack
has been widely used across the industry and can also be found in many Roland
items. Includes nut and washer.
Part #J-538 |
$4.95 |
|
Click on photo for
larger view
|

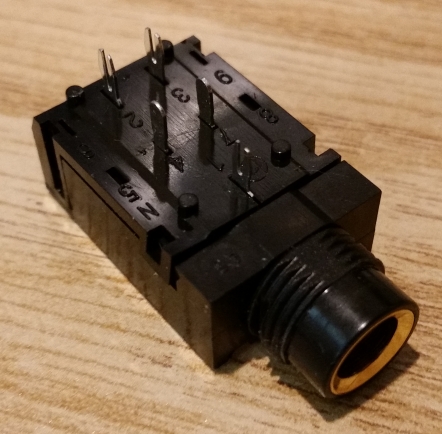

JACK,
5-PIN Low Profile, 1/4".
Used in some effects pedals, including
certain Boss™™
pedals. Has 5 pins, located right down the center of the jack (one
pin toward the front of the jack, then 2 rows of 2 pins each, centered). Nut and washer are included,
Note: Gold trim ring
on face of jack.
Part #J-575 |
$4.50 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™
Found in many guitars, effects pedals, amps speaker output. Includes nut and washer.
Part #J-11 |
$4.29 |
|
Click on photo for
larger view |
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft™
Used with T/R/S plugs for either balanced connections or stereo connections. Also very common in guitars with active pickups, and as the input jack on some effects pedals.
The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.
Fender part number 0013043000.
Part #J-12B |
$4.35 |
|
|
 |
Op-Amp, 4558, very common in amplifiers, mixers, power amps. 8-pin DIP
Part #NJM4558-D |
$1.00 |
|
|
|
Low-noise 5532 Dual Op-Amp in 8-pin DIP package.
Part #NE5532 |
$1.50 |
|
|
|
Low-noise 5534 Single Op-Amp in 8-pin DIP package.
Part #NE5534 |
$1.50 |
|
|
|
Low-noise 2068 Dual Op-Amp in 8-pin DIP package.
Part #NJM2068 |
$1.50 |
|
|
|
Low-current, JFET input, TL062 Dual Op-Amp in
8-pin DIP package. Compatible with TL072 designs, with significantly
lower current draw. Good choice for battery-operated pedals to
increase battery life.
Part #TL062 |
$1.00 |
|
|
|
Low-noise, JFET input, TL071 Single Op-Amp in 8-pin DIP package.
Also TL071CN.
Part #TL071CP |
$1.50 |
|
|
|
Low-noise, JFET input, TL072 Dual Op-Amp in 8-pin DIP package.
Also TL072CN.
Part #TL072CP |
$1.60 |
|
|
|
High slew rate, JFET input, TL082 Dual Op-Amp in
8-pin DIP packag
Part #TL082 |
$1.90 |
|
4808-3004 |
From the 3M Company ... 8-pin DIP socket, fits all of the
8-pin op-amps above. We recommend installing a socket first whenever you replace an op-amp - it makes future repairs much quicker and easier!
#4808-3004 |
$0.35 |
|
